Fiber Distribution & Termination Boxes

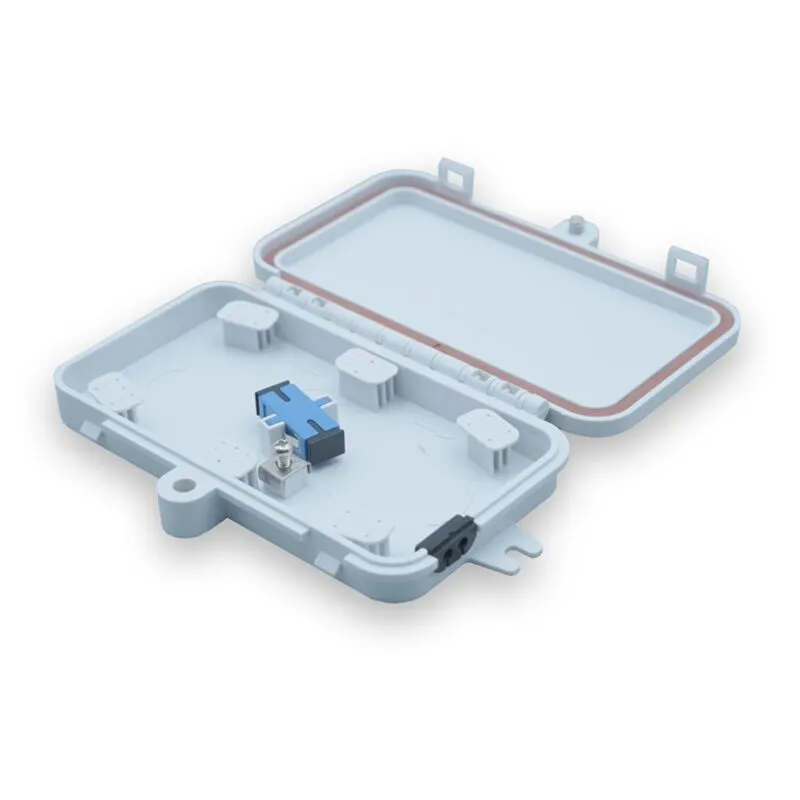

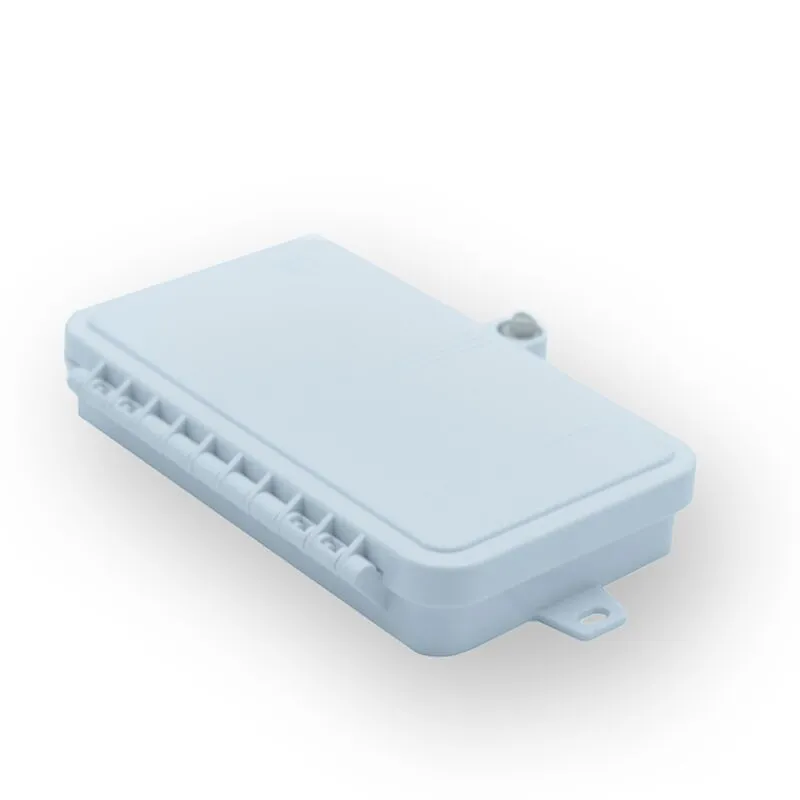

2-Port 1-Core Fiber Optic Terminal Box
Wall Mount, 1 inlet 1 outlet, Indoor Use
- Model: FOTB-SC1
- Colour: White
- Easy installation and maintenance
- Can be pre-installed with adapters and pigtails (sold separately)
- Free sample is available
Features：
. High quality abs plastics or ABS+pc
. small and lightweight
. Enough space for splicing and storage
. Internal fiber guides for easy installation
Technical parameter：
. Fiber radius of curvature:≥40mm
. Additional loss: ≤0.01dB
. Temperature range: -40°C~+60°C
Specification
| Size (mm) | 178*107*25 |
| Weight (kg) | 0.136 |
| Cable inlet/outlet | 1/1 |
| Cable dia (mm) | Φ3mm or 2*3mm |
| Max splice capacity | 1 core (single) |
| Suitable adapter | SC simplex |
