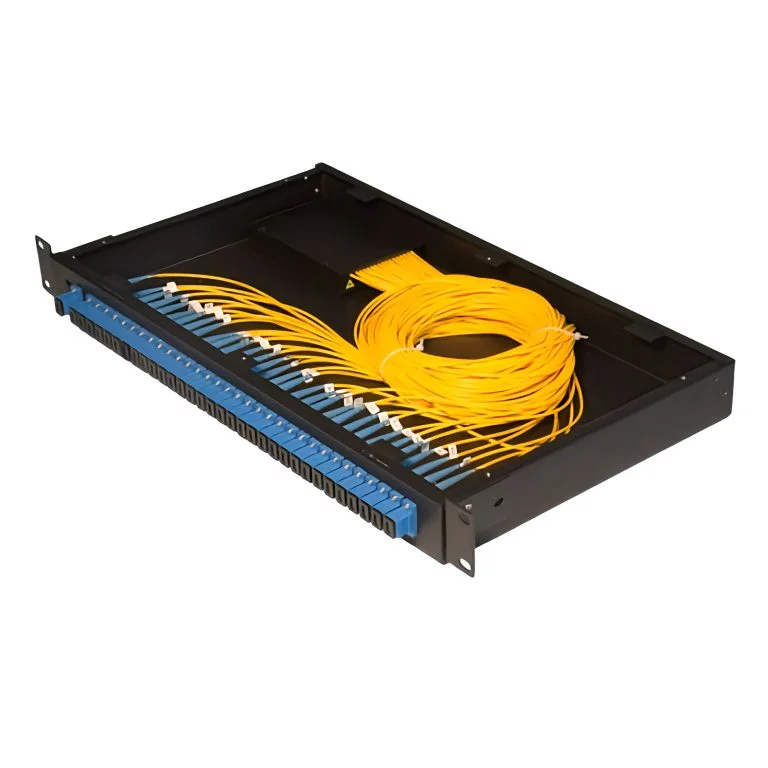

1×32 PLC Fiber Optic Splitter, 1U Rack Mount, SC/UPC
Rack Mouted PLC splitter, 1U 19″, 1×32 ABS Box, SC/UPC Singlemode, 2mm, 1.5M, G657A1,
- Low insertion loss and PDL
- Excellent environmental and mechanical Stability
- Meet Telcordia GR-1221 and GR-1209 specification
- Good uniformity and low addition loss
- Available to tailor fiber connector, adapter and cable as request
- One 1×32 ABS box splitter and 32pcs sc/upc SM SX adapters included.

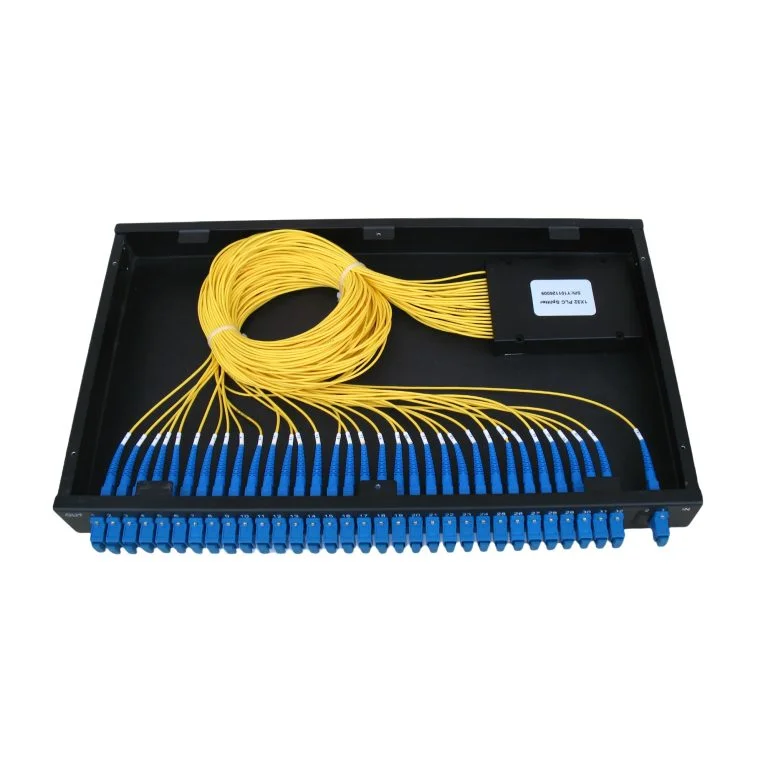

This 1×32 PLC fiber optic splitter is designed in 19” rack-mount metal enclosure. The standard 19 inches(1U) rack unit to contain a 1×32 ABS Box type PLC fiber optic splitter, it can be used for both indoor and outdoor applications in FTTx projects. The 1×32 rack mount PLC splitter commonly mounted in the network cabinet for uniform optical signal distribution. The fiber optic splitter is widely used in PON networks to realize optical signal power management.
Fiber optic beam splitter is one of the most important passive devices in the optical fiber link. PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses.
Specification:
| Splitter Type | PLC Splitter |
| Configuration Type | 1xN Or 2xN |
| Connector Type | SC,LC,FC,ST |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | Rack Mounted |
| Fiber Type | Singlemode G657A1 or G652D |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9, 2, 3 mm |
| Insertion Loss (≤) dB | 17.1 |
| Loss Uniformity (≤) dB | 1.5 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |
| Operating Temperature (°C) | -20~85 |
| Storage Temperature (°C) | -40~85 |
