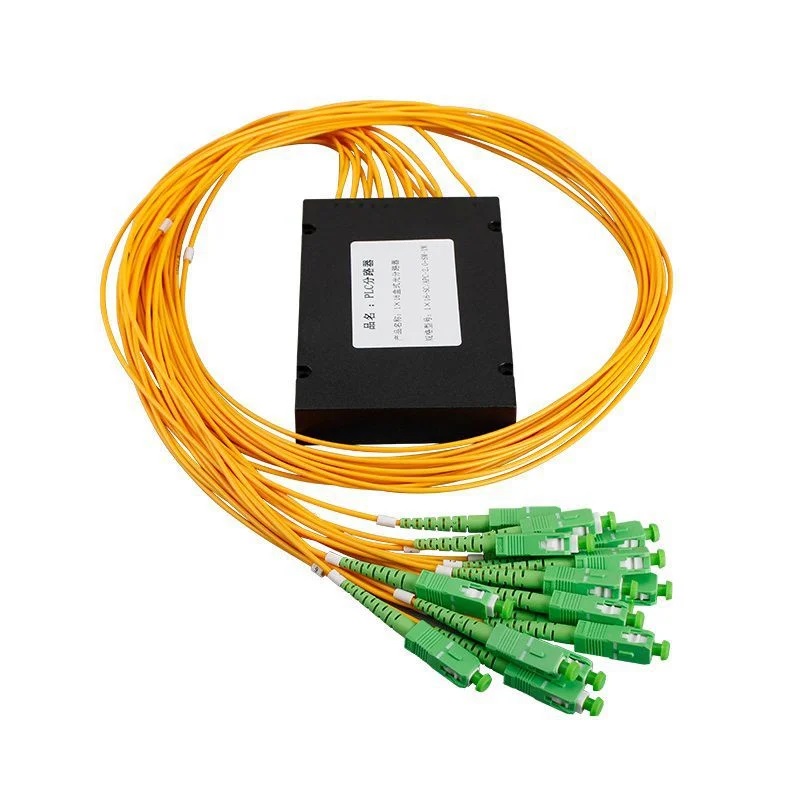

The 1×16 ABS PLC Fiber Optic Splitter is a compact passive optical device designed to divide one input fiber signal into 16 evenly distributed outputs. Its durable ABS enclosure provides reliable protection for internal optical components and fibers while allowing easy and secure installation.
Designed for EPON, GPON, FTTH, and FTTX networks, the splitter enables efficient optical signal distribution to multiple homes or businesses. Its compact design makes it suitable for installation in outdoor fiber distribution hubs, network cabinets, and other fiber access points.
Features
- 1×16 Splitting: One input fiber with 16 evenly distributed output fibers.
- Durable ABS Housing: Protects internal optical components and fiber connections.
- Compact Design: Space-saving enclosure for easy installation.
- Passive Optical Device: Requires no external power for signal distribution.
- Wide Compatibility: Suitable for EPON, GPON, FTTH, and FTTX networks.
- Flexible Deployment: Ideal for outdoor fiber distribution hubs and network cabinets.
- Reliable Signal Distribution: Efficiently distributes optical signals to multiple users.
Specification:
| Splitter Type | PLC Splitter |
| Configuration Type | 1xN Or 2xN |
| Connector Type | SC,LC,FC,ST |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | ABS Box |
| Fiber Type | Singlemode G657A1 or G652D |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9, 2, 3 mm |
| Insertion Loss (≤) dB | 17.1 |
| Loss Uniformity (≤) dB | 1.5 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |
| Operating Temperature (°C) | -20~85 |
| Storage Temperature (°C) | -40~85 |
