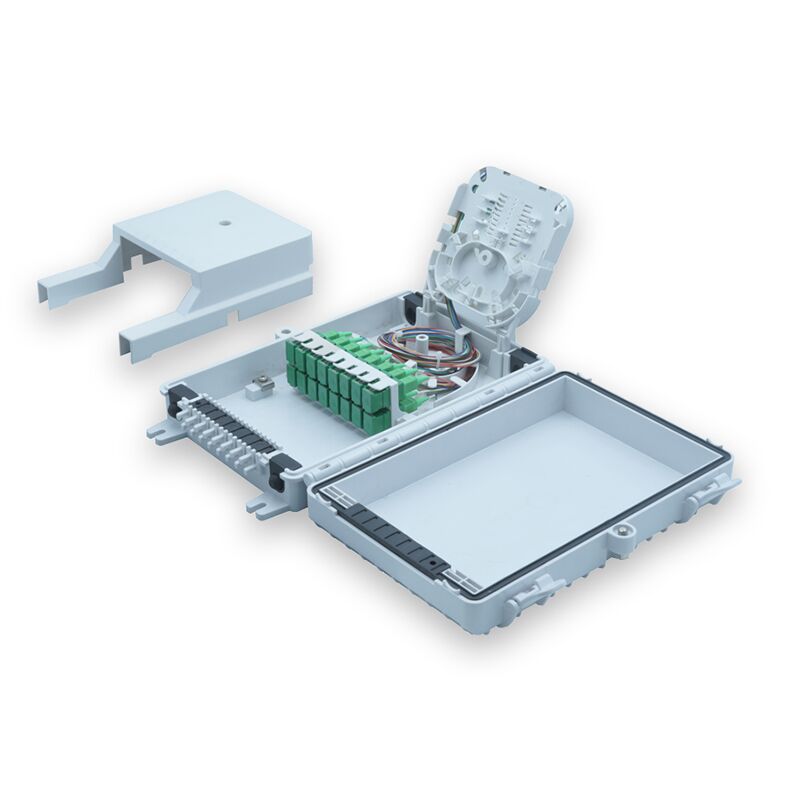

The 16-Port Fiber Access Terminal (FAT) Box is designed for FTTH last-mile networks, connecting feeder cables to subscriber drop cables while integrating splicing, splitting, distribution, and cable management in one compact enclosure. It is suitable for indoor and outdoor use in MDUs, residential buildings, commercial facilities, and villas.
With 4 cable inlets and 16 cable outlets, it supports up to 16 SC adapters, one 1×16 blockless PLC splitter, and up to 18-core splicing. Its high-strength engineering plastic construction, anti-theft lock, and dual-layer design provide reliable protection and easy installation and maintenance.
The mid-span access design allows quick fiber access and splicing without cutting the cable, while the IP65 waterproof rating supports reliable outdoor deployment. The box can be installed on walls or poles for flexible FTTH network deployment.
Features
- Durable Construction: High-strength ABS or ABS+PC with UV and shock resistance.
- Easy Cable Entry: Rubber inlet plugs allow cables to enter without damage.
- Convenient Splicing: Flip-style splice tray simplifies installation and maintenance.
- Dust Protection: Screw-secured cover protects the splice area from dust.
- Compact Design: Space-saving enclosure takes up minimal wall space.
- Flexible Installation: Supports both wall-mount and pole-mount applications.
Technical Parameters
- Fiber Bending Radius: ≥30 mm
- Additional Loss: ≤0.01 dB
- Operating Temperature: –10°C to +70°C
- Side Pressure Resistance: ≥2000 N/10 cm
- Impact Resistance: ≥20 N·m
