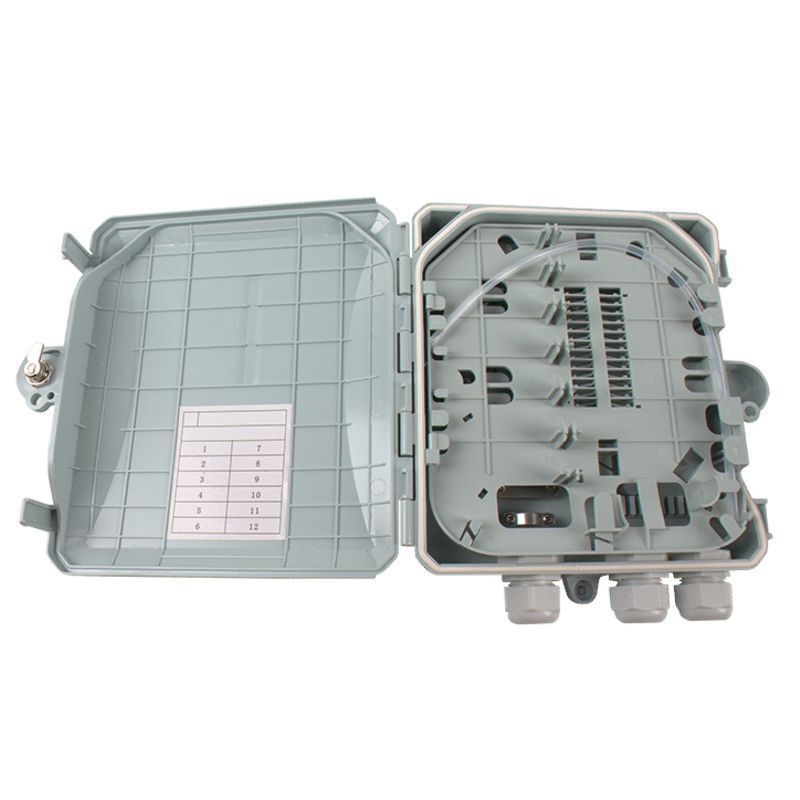

The 12-Port Fiber Access Terminal Box is designed for FTTH last-mile networks, connecting feeder cables to subscriber drop cables while integrating fiber splicing, optical signal splitting, termination, and cable management in one compact enclosure. It supports direct connection, signal branching, and terminal access, making it suitable for MDUs, residential buildings, commercial facilities, and villas.
The box supports up to 12 SC adapters, one 1×8 mini blockless PLC splitter, and up to 12-core fiber splicing. Its high-strength engineering plastic construction provides reliable protection for fiber connections, while the screw-type lock enhances security and the dual-layer design simplifies installation and maintenance.
With an IP65-rated waterproof design, the enclosure is suitable for indoor and outdoor wall-mounted installation, providing a reliable solution for FTTH fiber access networks.
Features
- 12-Port Capacity: Supports up to 12 SC adapters and 12-core splicing.
- Splitter Support: Accommodates one 1×8 mini blockless PLC splitter.
- Durable Construction: High-strength engineering plastic protects fiber connections.
- Secure Design: Screw-type lock provides added security.
- Organized Layout: Dual-layer structure simplifies fiber management and maintenance.
- Waterproof Protection: IP65-rated enclosure for reliable indoor and outdoor use.Specification:
Size（mm） 220*200*50 mm Suitable Adapters SC, LC Material ABS+PC Cable inlet 1 Port Fiber outlet 2 Ports Max Fiber splice capacity 12 Cores Applications FTTH, FTTB Max splitting 1:8 Lead Time 7 days for 100 pcs, 20 days for 300 pcs MOQ 100 pcs
