Fiber Optic Adapters

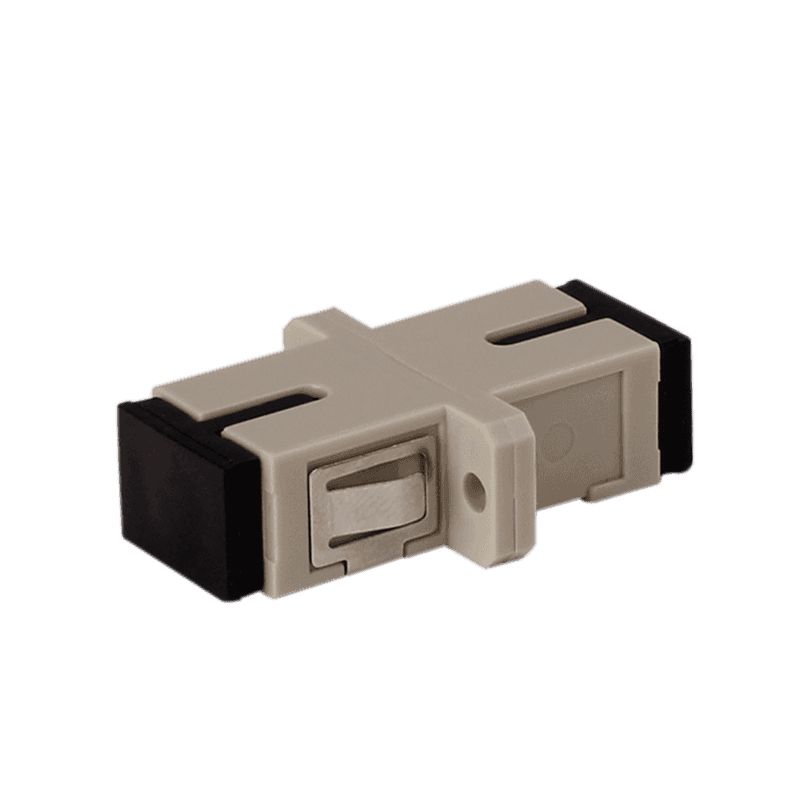

SC Multimode Fiber Optic Adapter
SC/UPC to SC/UPC Simplex Singlemode Fiber Coupler
- High-precision ceramic sleeve for low insertion loss
- Meet international standards and 100% tested
- Excellent temperature stability
The Typical SC fiber optic adapter is with plastic housing. Most of the sc adapters come with ceramic sleeves, while there is bronze sleeve type as well, which is generally multimode types.
The sc adapter features a small size but has excellent performance. It is with good durability, repeatability and changeability.
We supply complete SC fiber optic adapters, these products have various types, including single mode and multimode, simplex and duplex versions. Standard female to female SC fiber couplers and hybrid SC fiber optic adapters are available. These SC adapters are suitable for ODF and FTTH products.Specification:
| Fiber Type | Single-mode | Multimode |
| Adapter type | SC Fiber Optic adapter | |
| Polishing Type | UPC APC | UPC |
| Insertion Loss (dB) | ≤0.2 | ≤0.25 |
| Tensile Strength | F200N | |
| Durability(times) | 1000 | |
| Operation Temperature (℃) | -40℃ ～+80℃ | |
| Sleeves Material | Zirconia Ceramic |
