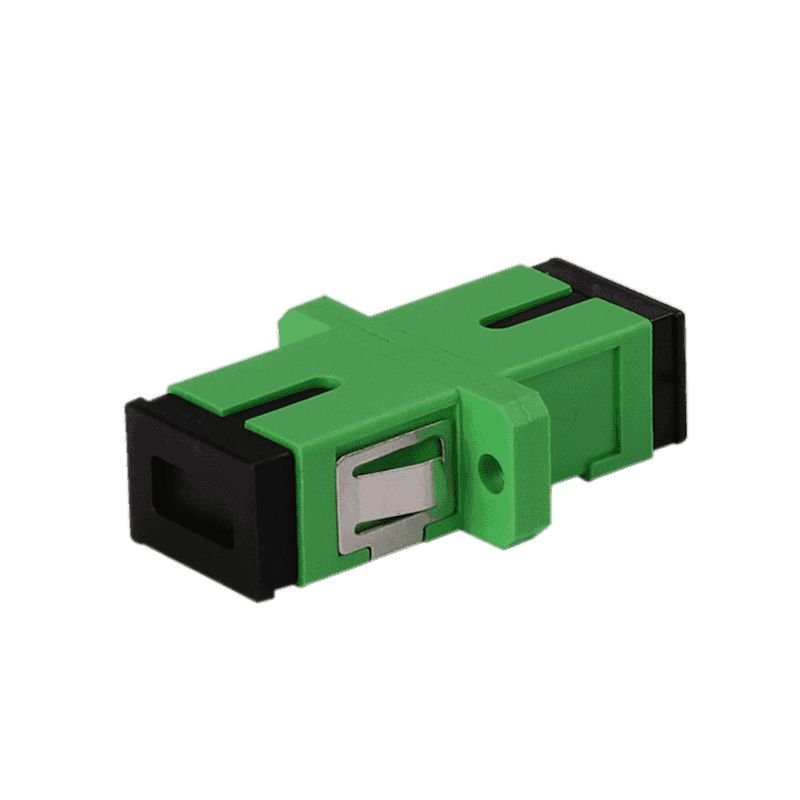

The SC/APC fibre optic adapter typically has a plastic casing. The majority of SC adapters have ceramic sleeves, however there are also bronze sleeves, which are typically multimode models.
Despite its compact size, the SC adapter performs exceptionally well. It has good reproducibility, durability, and adaptability.
We provide complete SC fibre optic adapters, which come in simplex, duplex, single mode, and multimode varieties. There are both hybrid SC fibre optic adapters and standard female-to-female SC fibre couplers. ODF and FTTH products can use these SC adapters.
Specification:
| Fiber Type | Single-mode | Multimode |
| Adapter type | SC Fiber Optic adapter | |
| Polishing Type | UPC APC | UPC |
| Insertion Loss (dB) | ≤0.2 | ≤0.25 |
| Tensile Strength | F200N | |
| Durability(times) | 1000 | |
| Operation Temperature (℃) | -40℃ ～+80℃ | |
| Sleeves Material | Zirconia Ceramic |
