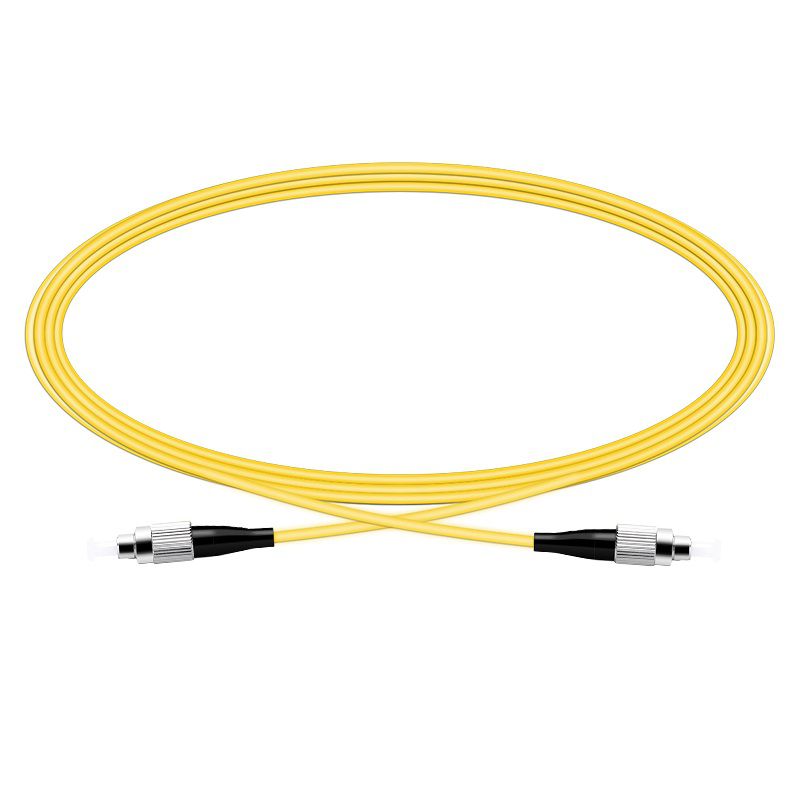

This FC to FC Fibre patch cable has an FC connection on both ends and is a single mode cable. In fibre optic networks, equipment is frequently connected using fibre patch cords. The fibre optic jumper can be classified according to the types of fibre optic connectors. For example, we can refer to it as FC fibre patch cable because it has an FC connector, or PC, UPC, or APC type fibre patch cable due to the way the fibre connectors are polished.
With a variety of fibre optic connections (sc/lc/fc/st/e2000), our fibre optic jumper comes in single mode and multimode varieties. The jacket, fibre diameter, and cable colour are optional.
Specification:
| Connector Type | FC-FC | Cable Diameter | 0.9mm/2.0mm/3.0mm |
| Fiber Type | SM, MM | Fiber Count | Simplex/Duplex/Quad |
| Polish | UPC,APC | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.25dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40°C~80°C |
| Fiber-Grade | G652D,G657A,G.651 | Cable Length | 1m/2m/3m/5m… |
