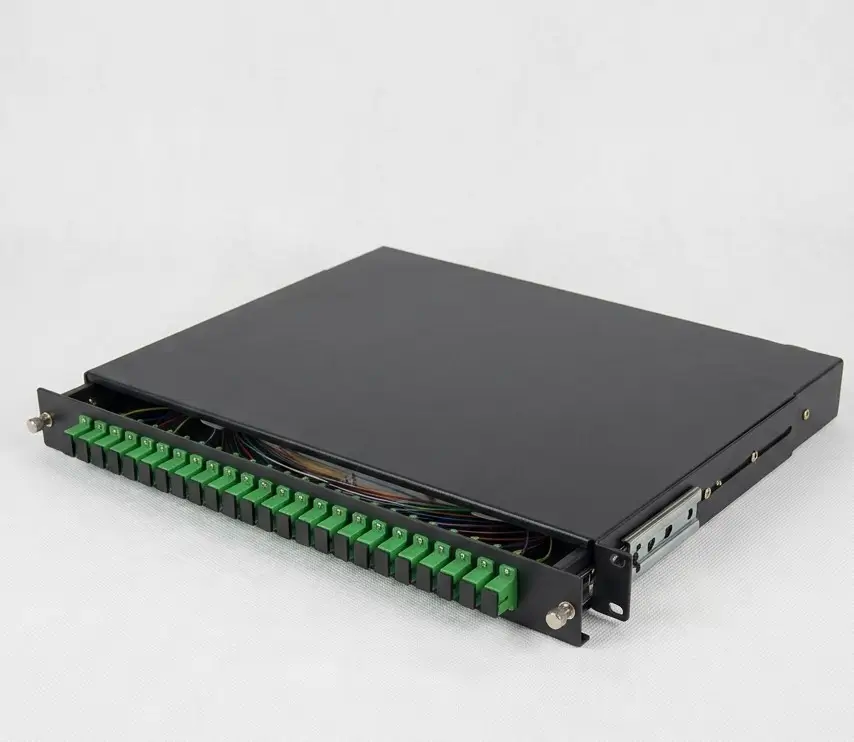

The 24-Port Sliding Fiber Patch Panel is a 1U rack-mount enclosure designed for fiber splicing, termination, and patching between external optical cables and pigtails. Its slidingdrawer design provides easy access for installation and maintenance, while the internal splice tray and routing spool keep fibers organized.
The panel supports up to 24 SC or LC adapters in simplex or duplex configurations and is compatible with standard 19-inch and 23-inch server racks. Four rear cable entry points with rubber grommets help protect incoming fiber cables from damage, while the front adapter panel provides convenient patch cable connections.
Features
- Durable Construction: High-quality cold-rolled steel with electrostatic surface coating.
- Complete Fiber Management: Includes cable fixing device, splice tray, and routing rings.
- Expandable Design: Stacked splice trays allow future capacity expansion.
- Safe Grounding: Independent insulation grounding device enhances electrical safety.
- Strong Splice Tray: Made from high-strength engineering plastic.
- Flexible Adapter Support: Accommodates up to 24 SC or LC adapters in simplex or duplex configurations.
- Easy Maintenance: Sliding drawer design provides convenient access to internal fibers.
Specification:
| Size(mm) | 485*300*44.5(1U) |
| Suitable adapters | SC, ST, FC, LC, SC duplex |
| Cable inlet/outlet | 4/24 |
| Connector capacity | 24 or 48 |
| Max fiber splice capacity | 24 (single core) 48（double core） |
| Weight (kg) | 4.9 |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 50pcs |
