Fiber Distribution & Termination Boxes

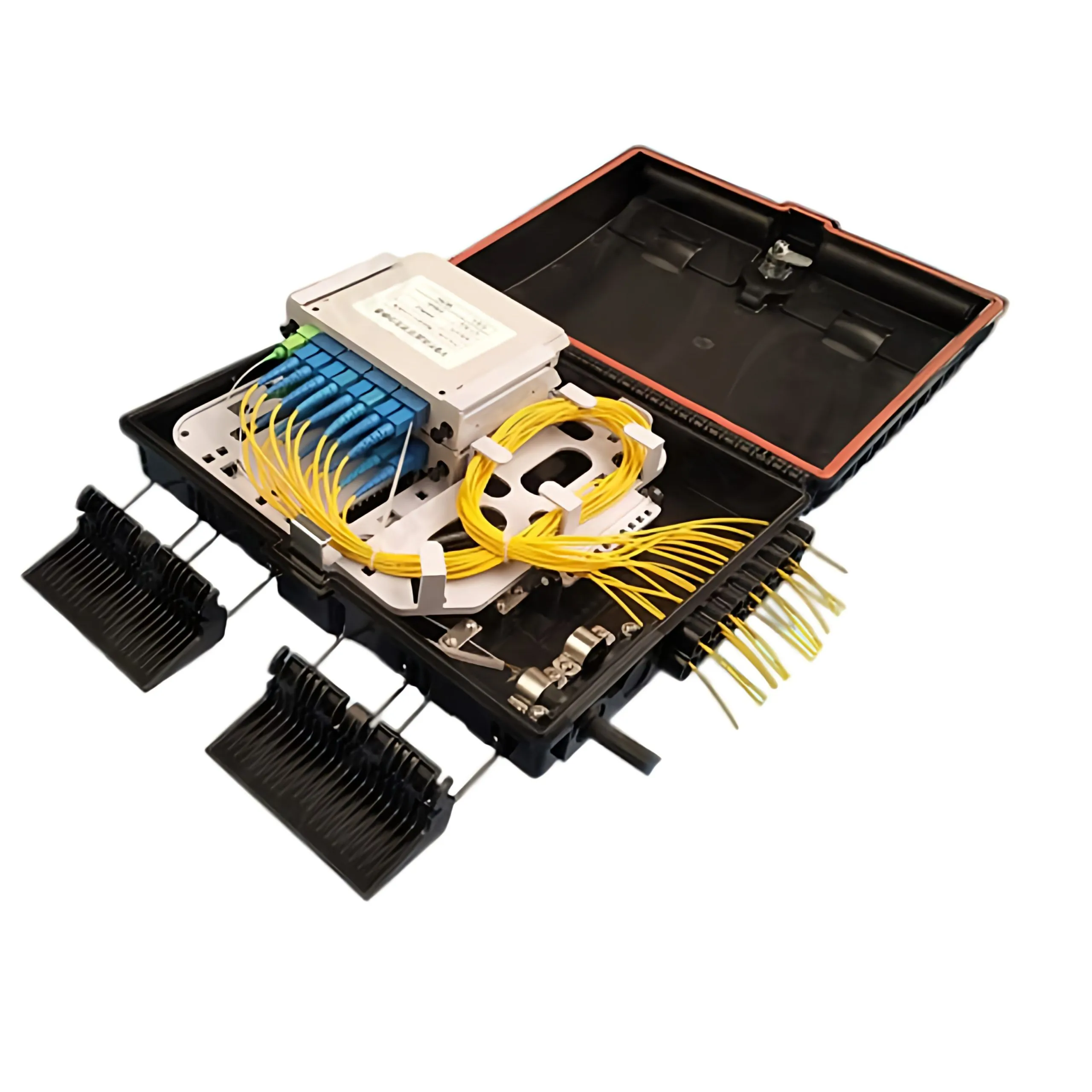

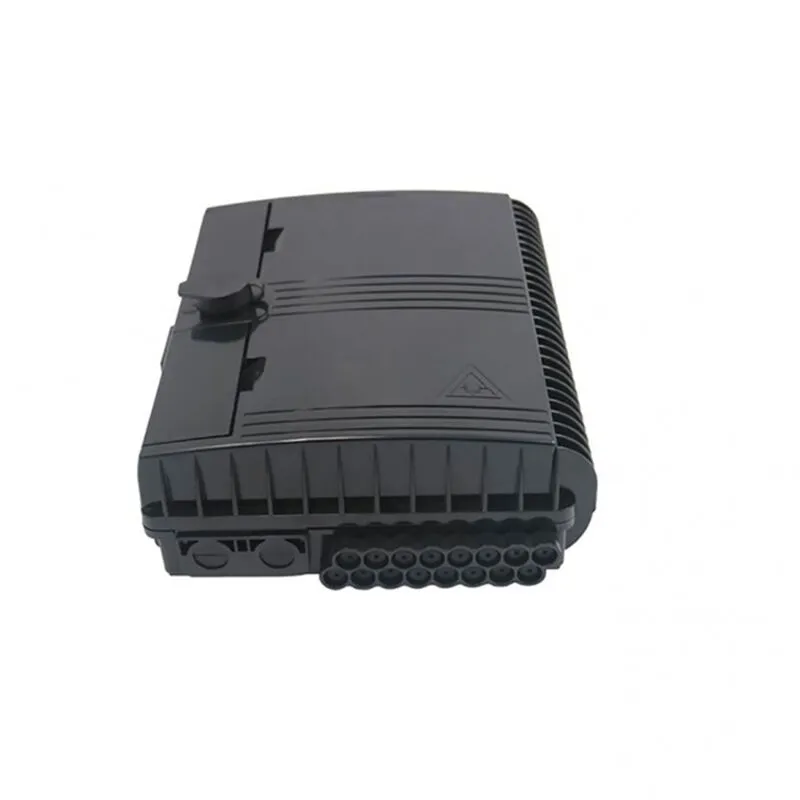

24-Core 16-Port FTTH Fiber Distribution Box for Plug-in Splitters
Wall Mounted/Pole Mounted, 2 In 16 Out, Plug-in Splitter , Indoor /Outdoor Use
- Model: FDB-0216AK1
- Material: ABS or ABS+PC
- Protection level up to IP65
- Can be pre-installed with splitter and pigtails (sold separately)
- A Free sample is available
Features:
. High-strength engineering plastics construction
. Easy for installation and maintenance
. Lockable cover for safety
Technical parameter:
. Optical fiber radius of curvature:≥40mm
. Splice tray additional loss：≤0.01dB
. Temperature Range: – 40°C ~ + 60°C
. Compressive strength: ＞500N
Specification：
| Size (mm) | 300*240*98 |
| Weight(kg) | 1.45 |
| Cable inlet/outlet | 2/16 |
| Cable dia (mm) | Φ6~Φ18 |
| Max splice capacity | 24 cores (single) |
| Max splitting | 1:16 or 1:8 |
| Lead time | 7 days for 100pcs, 20 days for 300pcs |
| MOQ | 100 pcs |
