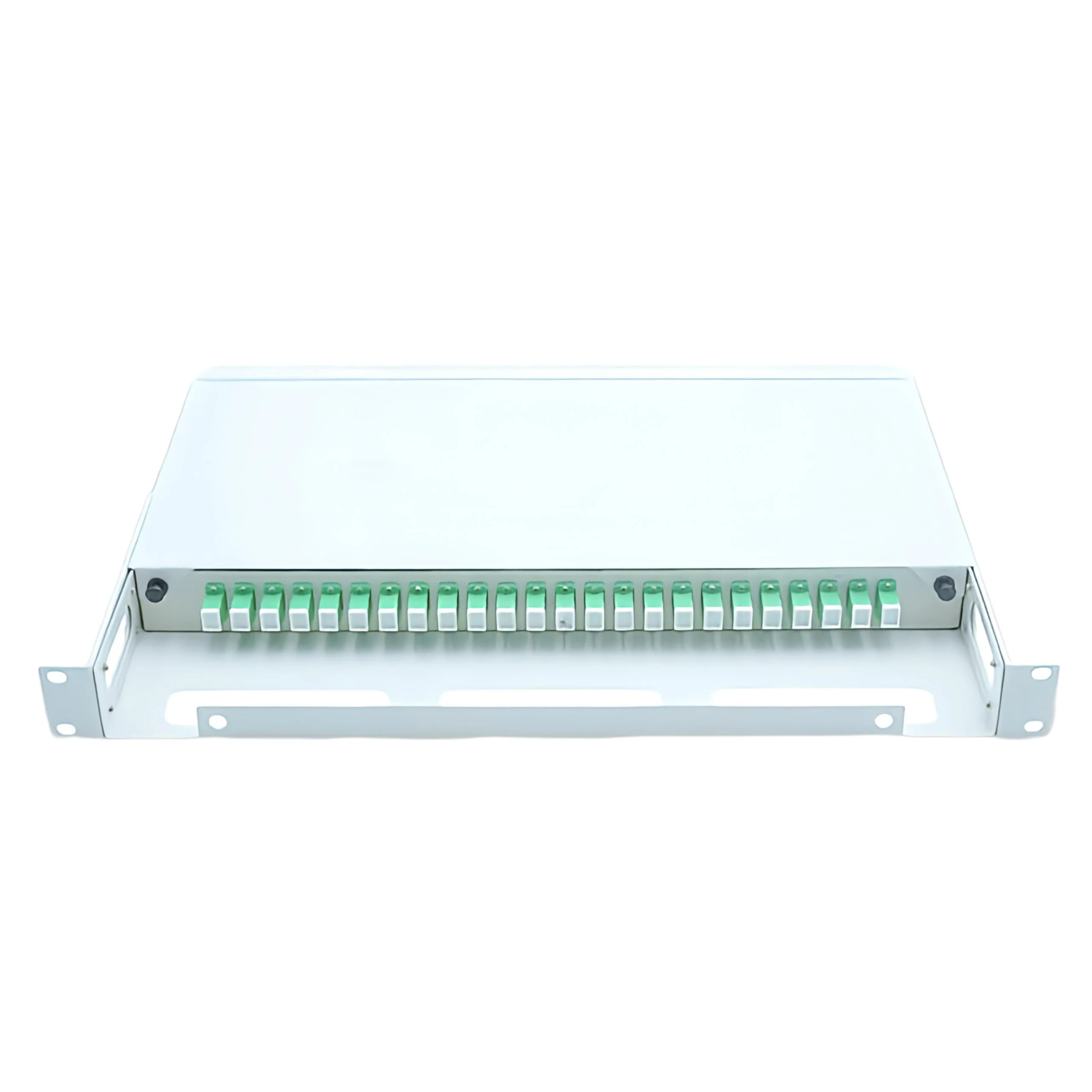

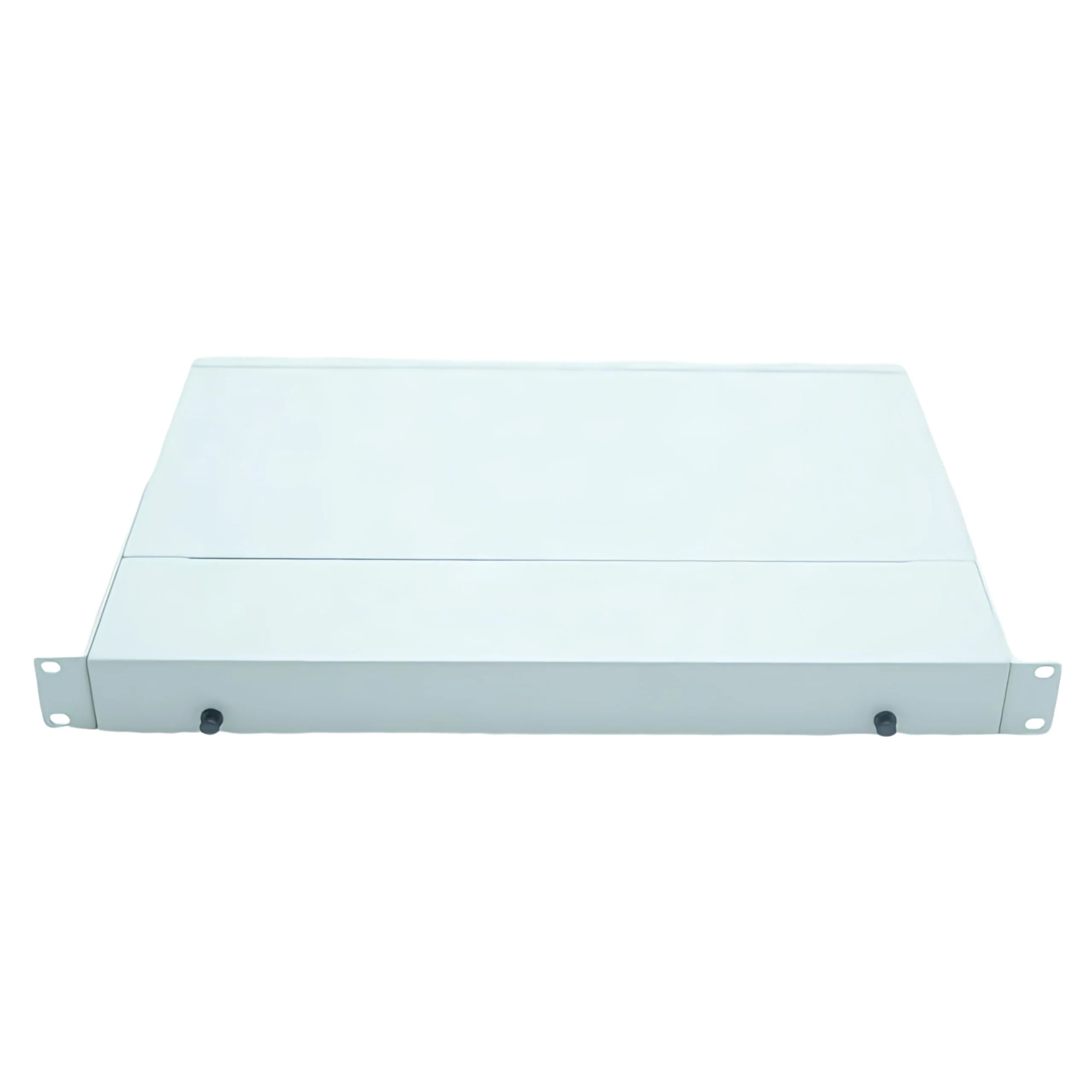

1U Rack-Mount 24-Port Fixed Fiber Patch Panel (24-Splice Capacity)
Fixed Type, 1U 19” Structure, Indoor Application
- Model: GPZJJ-JCL-Sc24
- Material: Premium cold rolled steel
- 4 cable ports all sealed with oil-resistant nitrile rubber
- Adapter panel and splice tray can vary as request
- No adapters included. Sold seperately
- Free sample is available
The 24 port rack mount fiber patch panel is designed to realize the connection between external optical fiber cables and pigtails. It is used for branch connection of optical cable terminal and usually installed in the 19″ or 23″ rack of the server cabinet. The rack mount fiber patch panel provides fiber termination,distribution and patching but in FTTH, FTTB, data centers, and telecom networks.
Specification:
| Size(mm) | 482*300*44.5 (1U) |
| Suitable adapters | SC, ST, FC, LC |
| Cable inlet/outlet | 4/24 |
| Connector capacity | 24 or 48 |
| Max fiber splice capacity | 24 (single core) 48（double core） |
| Weight (kg) | 4.1 |
| Lead Time | 7 days for 100pcs, 20 days for 300pcs |
