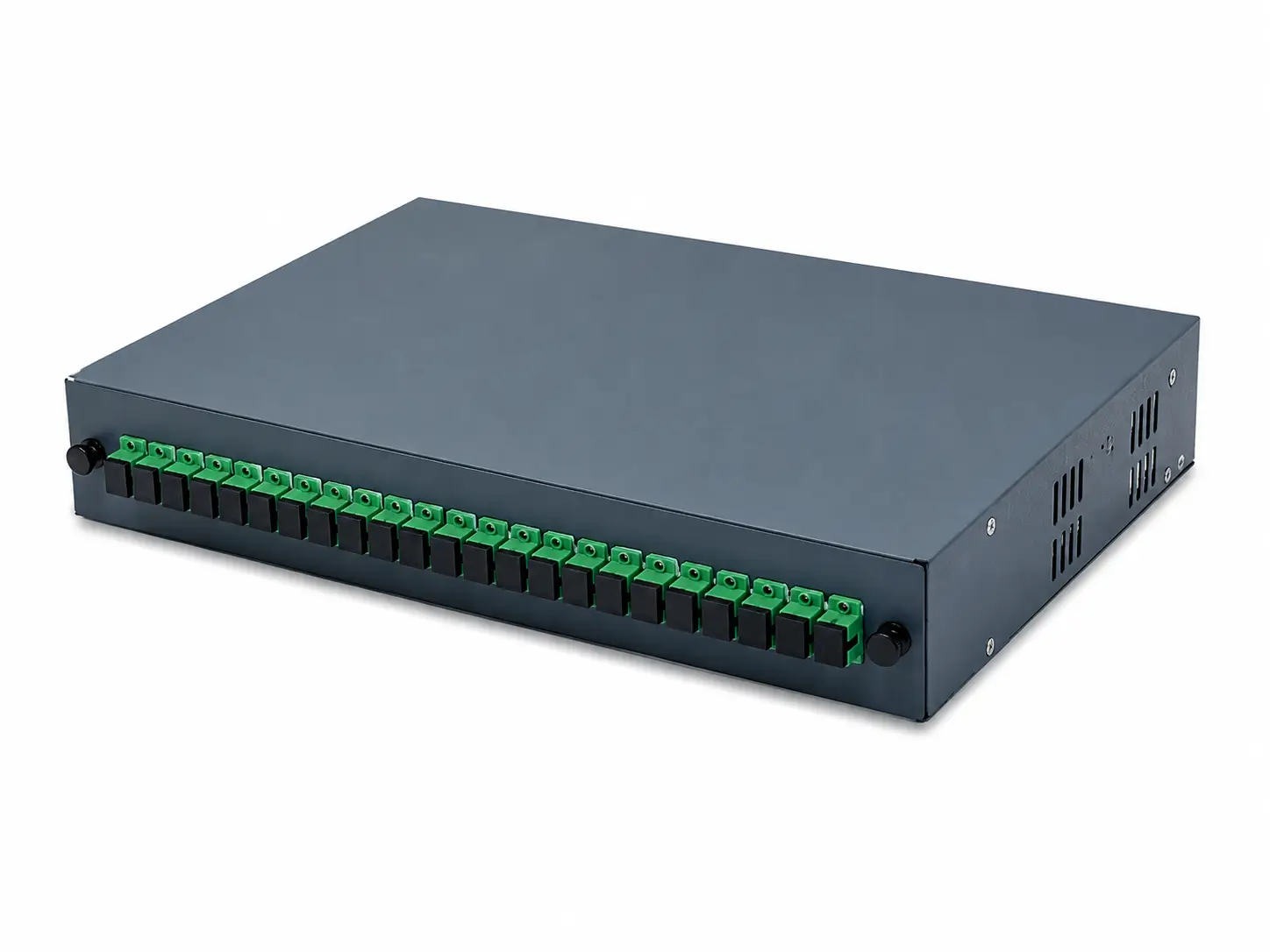

The purpose of the 1U 24 port fiber patch panel is to connect external optical cables to pigtails. Depending on the application, it can be configured with a SC or LC plate. It features four cable entrance holes on the back that are equipped with rubber grommets to prevent damage to the fiber optic cable. The rack mount fiber patch panel offers a single 24F splice tray and routing spool inside the enclosure for convenient fiber operation. It has a drawer style, a sensible layout, and enough space for straightforward installation and maintenance.
For rack-mount installation, this 24 port fiber patch panel can be pre-terminated with a variety of adapters (such as sc, fc, lc, and st) and 24 or 48 strand pigtail. The cable can be single-mode or multimode based on your particular solution. The 1U fiber enclosure is a perfect option for FTTH, FTTB, data centers, and telecom networks because it provides superior fiber termination, splicing, and patching management.
Technical Index:
- Fiber curvature radius ≥40 mm
- Additional fiber tray loss: none
- Fiber length remaining in the tray: ≥1.6 meters
- Operating temperature: -5°C to +40°C
- Maximum tensile strength ≥500N
- Crush force greater than 200N
Specification:
Size(mm) 482*300*44.5 (1U） Suitable adapters SC, ST, FC, LC Cable inlet/outlet 4/24 Connector capacity 24 or 48 Max fiber splice capacity 24 (single core) or 48 (dual core) Application FTTH, LAN, WAN, CATV etc Lead Time 7 days for 100pcs, 20 days for 300pcs MOQ 50pcs
