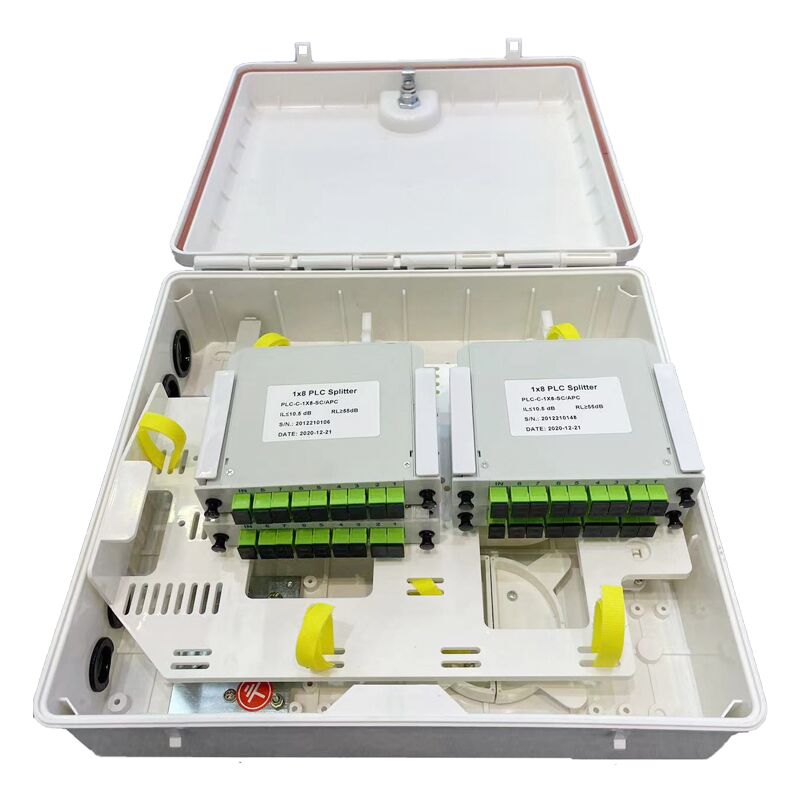

The 2 In 2 Out 32 Core Modular Fiber Distribution Box is a durable, high-quality enclosure designed for fiber distribution, termination, and cable management in FTTH/FTTB projects. It supports both wall- and pole-mounted installation in MDUs, commercial buildings, and villas.
Its flexible dual-layer design accommodates up to 4 × 1:8 cassette PLC splitters or standard adapter panels in the upper layer, while the lower layer includes a 24-core splice tray for organized and easy fiber management.
With 2 main inlets and 2 main outlets, it enables efficient feeder and distribution cable splicing and splitting while providing reliable waterproof and dustproof protection for demanding outdoor telecom environments.
Features:
- Durable Material: High-quality synthetic plastic with excellent aging and UV resistance.
- Waterproof Design: Secure waterproof lock for reliable indoor and outdoor use.
- Pigtail Storage: Dedicated area for temporary pigtail storage.
- Dual-Layer Structure: Bottom layer for splicing; upper layer for splitting and distribution.
- Flexible Cable Management: Flip-up middle panel with dedicated cable storage and locking features for butterfly cables.
- Splitter Capacity: Supports up to 4 cassette-type splitter modules.
- Expandable Splicing: Includes a 24F splice tray, expandable to meet different connection requirements.
Specification:Size(mm) 340*350*120 Weight(kg) 3.48 Cable inlet/outlet 2/2 Cable diameter (mm) ≤ Φ16 Max splice capacity 24 single cores Adapter No None Max splitting splitting1:8(4pcs), 1:16(2pcs) MOQ 100 pcs
