The 16-Port FTTH Distribution Box is designed for last-mile fiber networks, providing efficient connections between feeder and subscriber drop cables. It combines fiber splicing, termination, signal distribution, and cable management in one enclosure, making it suitable for indoor and outdoor FTTX deployments.

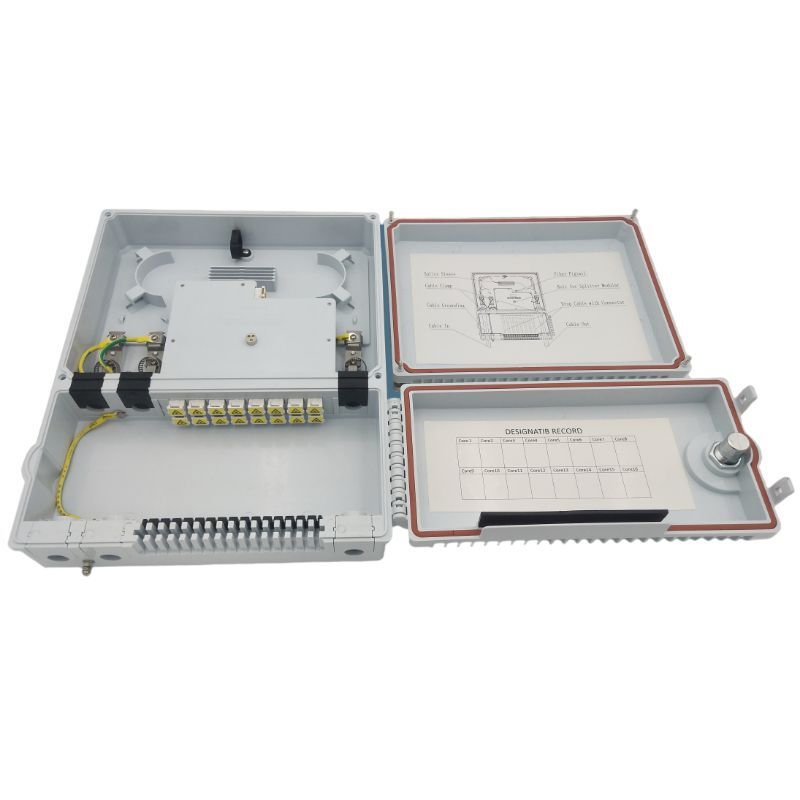

The dual-door design features 3 cable inlets and 16 drop cable outlets, supporting up to 16 SC adapters and 2 cassette PLC splitters. With a splicing capacity of up to 8 fibers, it offers flexible configuration for network expansion. Made from high-strength engineering plastic, the box provides durable protection for fiber connections, while the secure locking system helps prevent unauthorized access.
Its waterproof construction supports both wall- and pole-mounted outdoor installation, making it ideal for FTTH networks in residential buildings, MDUs, commercial facilities, and villas.
Features
- Durable Construction: High-density ABS plastic with UV, shock, and water resistance.
- Spacious Interior: Ample room for cable storage, fiber routing, and distribution.
- Dual-Door Design: Allows easier access and simplifies installation and maintenance.
- Enhanced Security: Locking mechanism helps protect internal components.
- Dust Protection: Rubber-sealed cable ports help prevent dust and debris from entering.
- 16 Drop Cable Support: Designed to accommodate up to 16 subscriber drop cables.
Specification:
Size(mm) 275*344*84 Weight(kg) 2.5 Cable inlet/outlet 3/16 Cable diameter (mm) Φ6~Φ15 Max splice capacity 8 cores (single) Max splitting 1：8（2pcs）plug-in splitter Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
