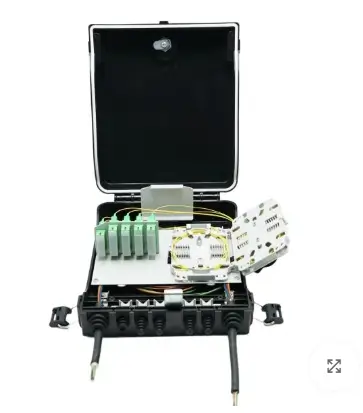

The 24-port FTTH Fiber Access Terminal (FAT) is designed for reliable last-mile fiber connectivity, providing an efficient transition between feeder cables and subscriber drop cables. It combines fiber splicing, termination, and distribution in a compact enclosure for indoor and outdoor FTTH deployments.
With 2 cable inlet ports and 5 cable outlet ports, the unit supports 24 SC adapters and one 1×16 steel-tube PLC splitter. It provides up to 24-fiber splicing capacity for organized fiber management and network expansion. Made from high-strength engineering plastic, the enclosure offers excellent durability and long-term protection. Its dual-layer structure simplifies installation and maintenance, while the anti-theft lock provides added security.
The IP65-rated weatherproof design supports both wall- and pole-mounted installation, making it suitable for residential buildings, MDUs, commercial facilities, and villas.
Features:
- 24-Port Capacity: Supports up to 24 subscriber fiber connections
- Cable Ports: 2 cable inlet ports and 5 cable outlet ports
- Adapter Support: Compatible with 24 SC adapters
- PLC Splitter Support: Supports 1×16 steel-tube PLC splitter
- Splicing Capacity: Up to 24 fibers
- Durable Material: High-strength engineering plastic with UV and impact resistance
- Dual-Layer Design: Simplifies fiber installation and maintenance
- Reversible Splice Tray: Provides convenient access during installation and maintenance
- Cable Storage: Provides sufficient space for cable storage and fiber routing
- Flexible Cable Inlets: Tower-structured rubber inlets accommodate different optical cable sizes
- Suspension-Fixed Cover: Keeps the cover securely positioned during construction
- Security: Equipped with an anti-theft lock
- IP65 Protection: Weatherproof design for indoor and outdoor deployments
- Mounting: Suitable for wall-mounted and pole-mounted installation
- Applications: FTTH networks, residential buildings, MDUs, commercial facilities, and villas
Specification:
Size (mm) 250*320*98 Weight(kg) 1.6 Cable inlet/outlet 2/5 Cable diameter (mm) Φ7 – Φ24 Max splice capacity 24 cores Adapter No 24 SC simplex (earless) Splice tray No 2pcs Max splitting 1:8 (2pcs) MOQ 100 pcs
