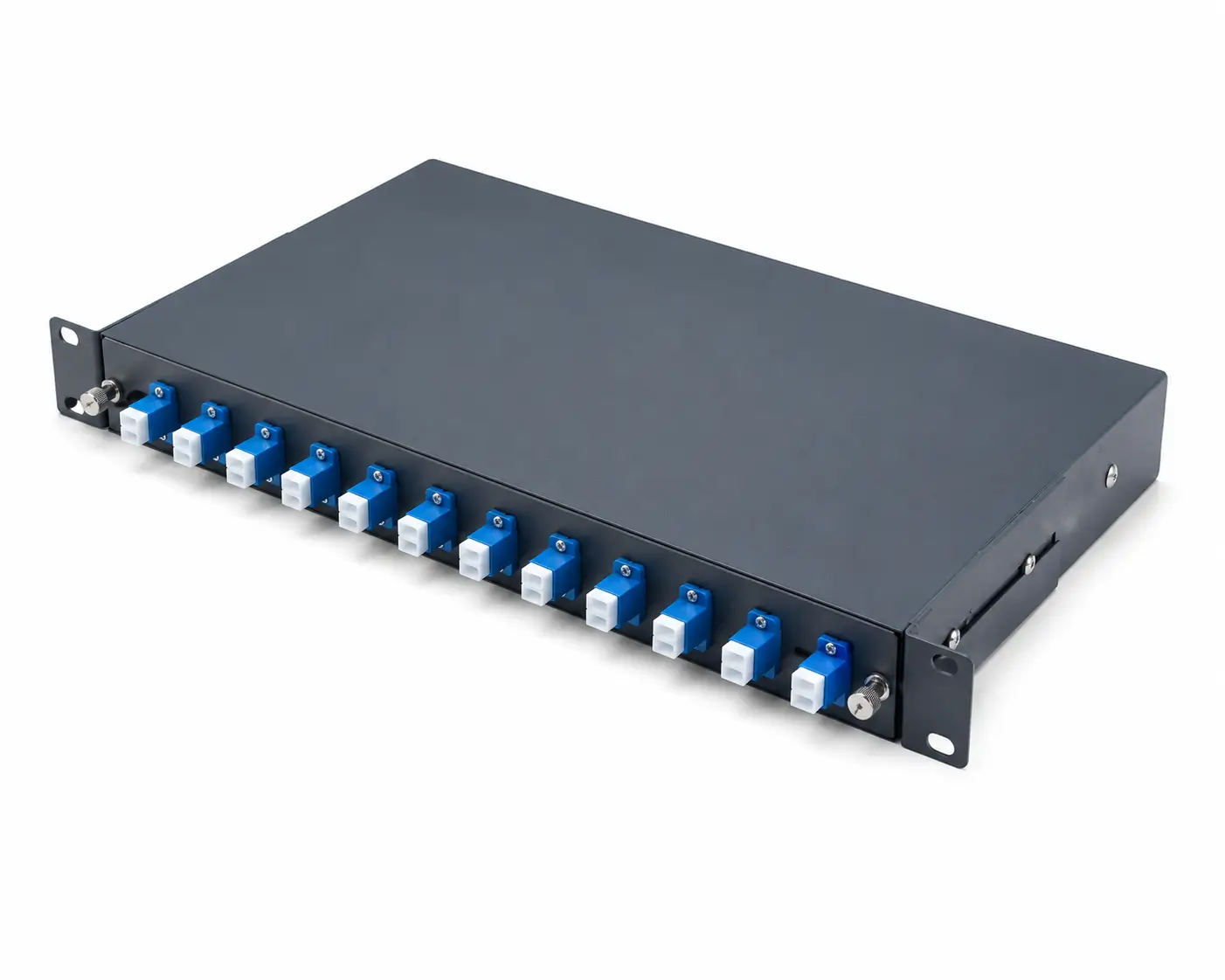

12 Port Fiber Patch Panel With 12 Adapter Ports, 12 Splices

The 12-port sliding fiber patch panel is designed to accommodate SC or LC adapters on the front face and can be pre-loaded with 12-strand single-mode or multimode pigtails based on customer requirements. Constructed from steel, this unit is a key component of fiber optic connectivity solutions, facilitating the connection between external optical cables and pigtails. The interior features a 24-fiber splice tray and cable routing spools for efficient splicing and slack management. This fiber distribution panel provides integrated splice trays and adapter plates for termination and cable organization, making it ideal for branch and terminal connections. It is typically mounted on 19″ or 23″ server racks.

This 12-port rack-mount fiber patch panel can be pre-terminated with various adapters (such as simplex or duplex SC and LC) and 12- or 24-strand pigtails using single-mode or multimode optical cable. Its sliding design allows the splice tray to be pulled out easily, facilitating straightforward fiber installation and maintenance. Cables enter from the rear of the panel, while patch cords are routed out the front via the adapter plate.

Features:

* Constructed from high-quality cold-rolled steel with an electrostatic spray finish.
* Equipped with cable-fixing hardware, a splice tray, and routing rings.
* Overlying splice tray design allows for easy capacity expansion.
* Independent insulation grounding device ensures safety.
* Internal splice tray is manufactured from high-strength engineering plastic.
* Cable inlets and outlets are sealed with oil-resistant nitrile rubber.

Technical Specifications:

• Optical fiber bend radius: ≥40mm
• Fiber tray excess loss: None
• Fiber storage length: ≥1.6m
• Operating temperature: –40°C to +60°C
• Lateral pressure resistance: 500N
• Impact resistance: 750N
