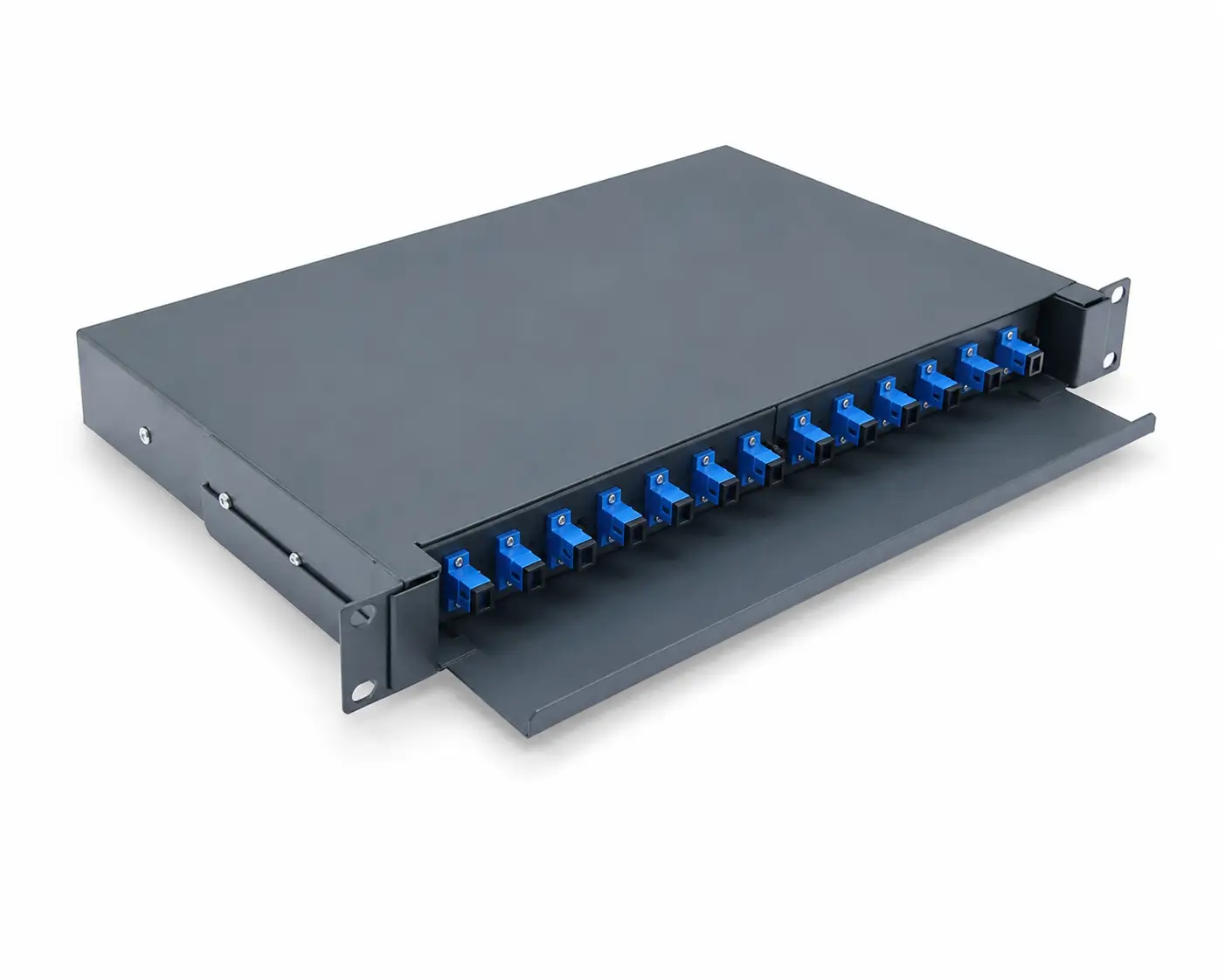

The 12 port rack-mounted fiber patch panel is intended to accommodate 2 individual 6 SC or LC adapters at the front and can also be pre-terminated with 12-strand single-mode or multimode pigtail cables based on customer specifications. The sturdy steel casing creates a safe connection between outside optical cables and pigtails, while the inside features a 24-fiber splice tray and cable management spools for splicing and organizing surplus optical fibers.
This 1U fiber patch panel provides superior fiber termination and patch management, making it perfect for optical cable distribution and connection terminals. It is usually set up in 19″ or 23″ server racks.
The distribution panel has a drawer-style design, can be pre-terminated with different adapter types (SC or LC, simplex or duplex), and accommodates 12‑ or 24‑strand single-mode or multimode pigtail cables. The splice tray can be effortlessly removed for straightforward fiber setup and easy upkeep. Cables come in from the back, while fiber patch cords are directed out via the front adapter panel for optimized connectivity. The rack mount fiber patch panel provides exceptional performance for fiber termination and distribution tasks, typically utilized in FTTH, FTTB, data centers, and telecommunications networks.
Features:
- Premium cold-rolled steel with electrostatic coating on the surface.
- Set up using a wired fixed device, splice tray, and threaded ring.
- Stacked splice trays facilitate expansion of capacity in the future.
- An autonomous insulation grounding system ensures safety.
- The internal splice tray is constructed from durable engineering plastics.
- Inlets and outlets are closed off with oil-resistant nitrile rubber.
Specification:
Size(mm) 482*300*44.5 (1U) Suitable adapters SC, ST, FC, LC Cable inlet/outlet 4/12 Connector capacity 12 or 24 Max fiber splice capacity 12 (single core) or 24 (dual core) Application FTTH, LAN,WAN,CATV etc Lead Time 7 days for 100pcs, 20 days for 300pcs MOQ 100pcs
