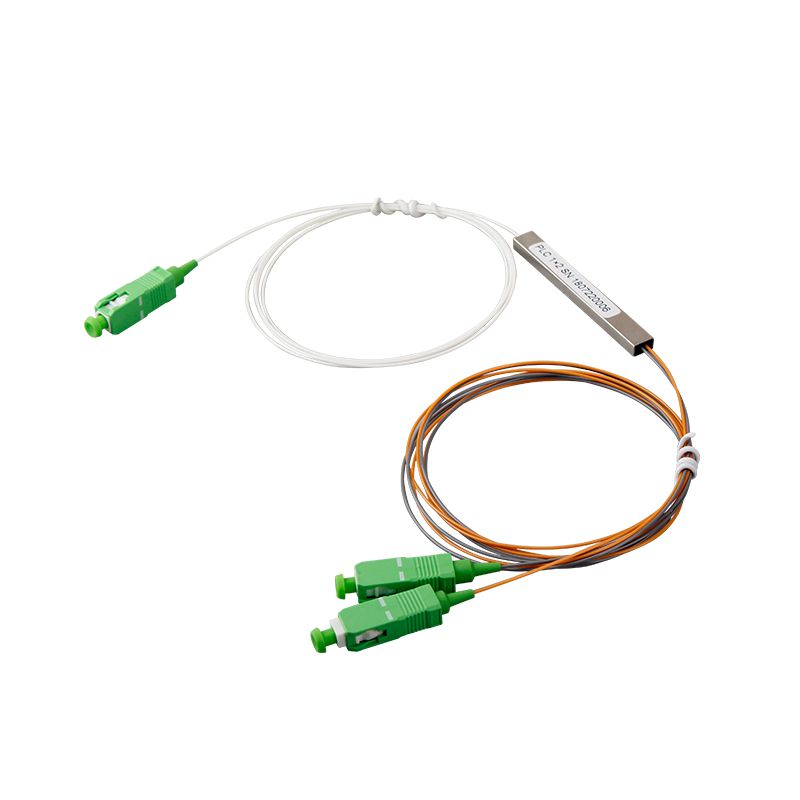

1×2 Blockless Fiber Optic Splitter
1X2 PLC Splitter, Blockless Mini Type, SC/APC Singlemode, 0.9mm, 1M, G657A1
- Low insertion loss and PDL
- Excellent environmental and mechanical Stability
- Meet Telcordia GR-1221 and GR-1209 specification
- Good uniformity and low addition loss
- Available to tailor fiber connector and cable as request
- Support configuration 1XN and 2XN
This 1×2 blockless PLC splitter has a stainless tube package that can provide strong protection for optical fiber cable. And the splitter ends terminated with sc apc connectors, so there is not fiber splice during fiber installation. AS it is with a compact structure, the 1×2 blockless plc splitter can be easily installed in fiber splice closure, optical distribution box for saving space. The mini module fiber optic splitter is widely used in PON &FTTH networks to realize optical signal power management.
Fiber optic splitter is one of the most important passive devices in the optical fiber link. PLC fiber optic splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, PON, FTTH, FTTX network. These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses.PLC splitter provides a low-cost light distribution solution with small size and high reliability.
Specification:
| Splitter Type | PLC Splitter |
| Configuration Type | 1xN Or 2xN |
| Connector Type | SC,LC,FC,ST |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | Blockless |
| Fiber Type | Singlemode G657A1 or G652D |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9mm |
| Insertion Loss (≤) dB | 17.1 |
| Loss Uniformity (≤) dB | 1.5 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |
| Operating Temperature (°C) | -20~85 |
| Storage Temperature (°C) | -40~85 |
