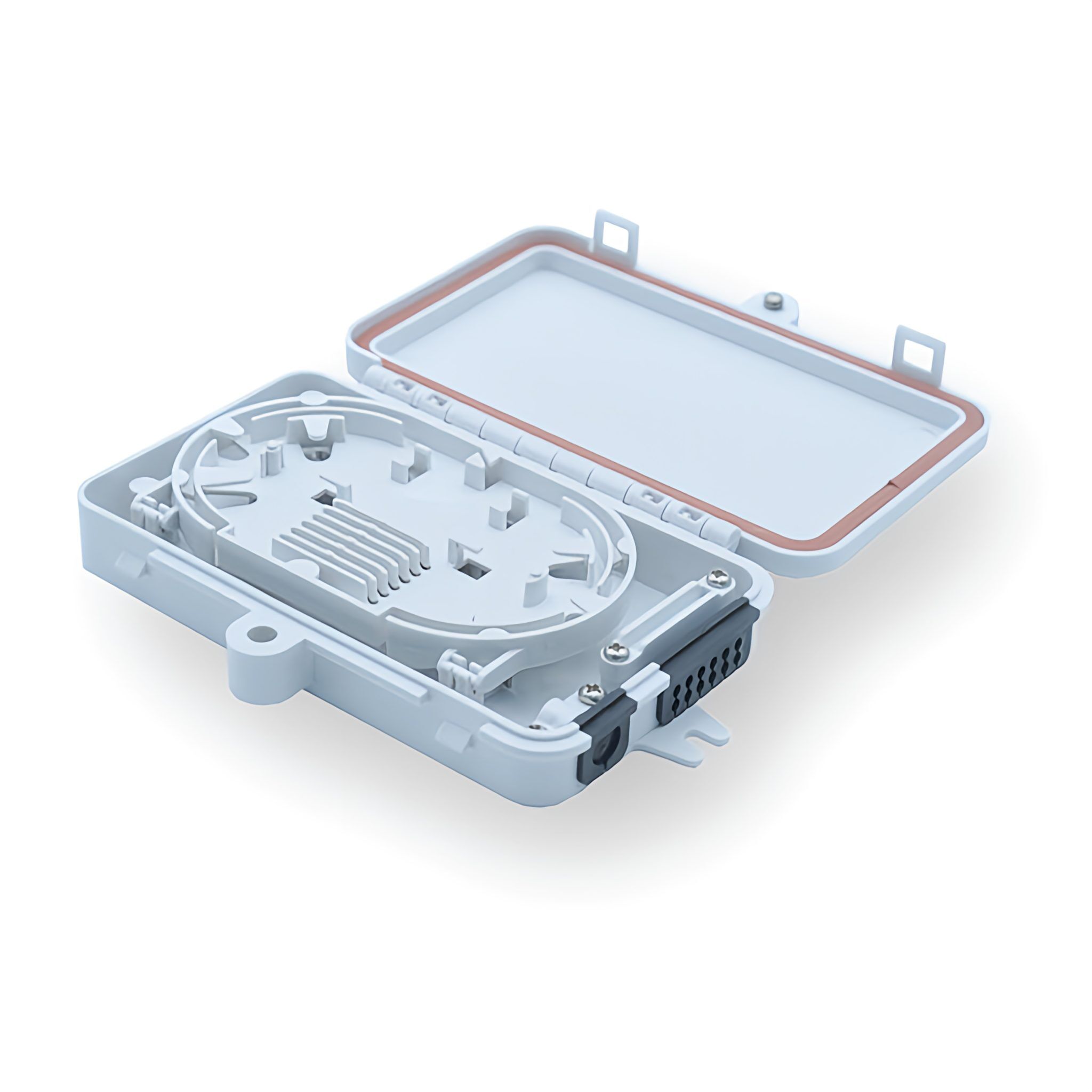

The 12-Port Fiber Splice Distribution Box is a compact wall-mounted enclosure designed for fusion splicing, optical signal splitting, and fiber management in FTTH and P2P networks. With no adapter slots, it provides a reliable, low-loss solution for applications where permanent fiber-to-fiber connections are preferred.
The enclosure features 1 cable inlet and 12 drop cable outlets, supporting up to 12-core splicing and one 1×8 blockless mini PLC splitter. Its two-layer design provides efficient fiber organization while saving space. Made from high-density engineering plastic, it offers excellent mechanical protection and resistance to UV, impact, and water.
With an IP65-rated design, the box is suitable for both indoor and outdoor applications. The flip-style splice tray, screw-type lock, and internal fiber guides make installation, maintenance, and fiber routing simple and secure.
Features
- Durable Construction: High-density plastic with UV, impact, and water resistance.
- Easy Fiber Management: Flip-style splice tray simplifies fiber organization.
- Secure Design: Screw-type lock provides safe and convenient access.
- Safe Fiber Routing: Internal guides help maintain the proper bend radius.
- Compact Structure: Two-layer design saves space while keeping fibers organized.
- Splitter Support: Accommodates one 1×8 blockless mini PLC splitter.
Technical Parameters
- Fiber Bending Radius: ≥40 mm
- Additional Splice Tray Loss: ≤0.01 dB
- Operating Temperature: –40°C to +60°C
- Compressive Strength: >500 N
Specifications:
Size(mm) 114*178*28 Weight(kg) 0.24 Cable inlet/outlet 1/12 Cable diameter (mm) Φ3~Φ10 Max splice capacity 12 cores (single) Suitable adapter None Max Splitting 1×8(1pc) Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
