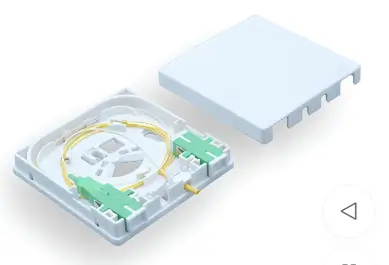

The 2-port fiber optic wall outlet provides a convenient termination point for connecting fiber drop cables and pigtails in residential and office environments. It supports fiber termination, fusion splicing, and cable management, allowing installers to connect drop cables to ONTs through fiber patch cords.
Designed for FTTH, FTTB, and FTTD networks, the compact outlet is suitable for apartments, residential buildings, villas, small offices, and other indoor environments. It supports up to two SC/APC simplex or two LC duplex adapters, with a splicing and termination capacity of up to 4 fibers.
Features:
- High-Quality Material: Made from durable ABS plastic for reliable mechanical protection
- Adapter Support: Accommodates up to 2 SC/APC simplex or 2 LC duplex adapters
- 4-Fiber Capacity: Supports up to 4 cores for splicing and termination
- Easy Installation: Two external adapter interfaces provide convenient fiber connections
- Flexible Cable Routing: Three cable access points at the front and bottom support different installation requirements
- Fiber Management: Internal fiber guides provide organized routing and a suitable bend radius
- Removable Cover: Provides easy access for fiber installation and maintenance
- Dust Protection: Dustproof caps protect unused adapter ports
- Compact Design: Suitable for wall-mount, surface-mount, and desktop applications
- Applications: FTTH, FTTB, and FTTD networks in residential and small-business environments
Specification：
Size (mm) 90*90*16.5 Weight(kg) 0.05 Cable inlet/outlet 3/2 Cable Diameter (mm) Φ3mm or 2*3mm Max splice capacity 2 cores (single) Suitable adapter SC, LC Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
