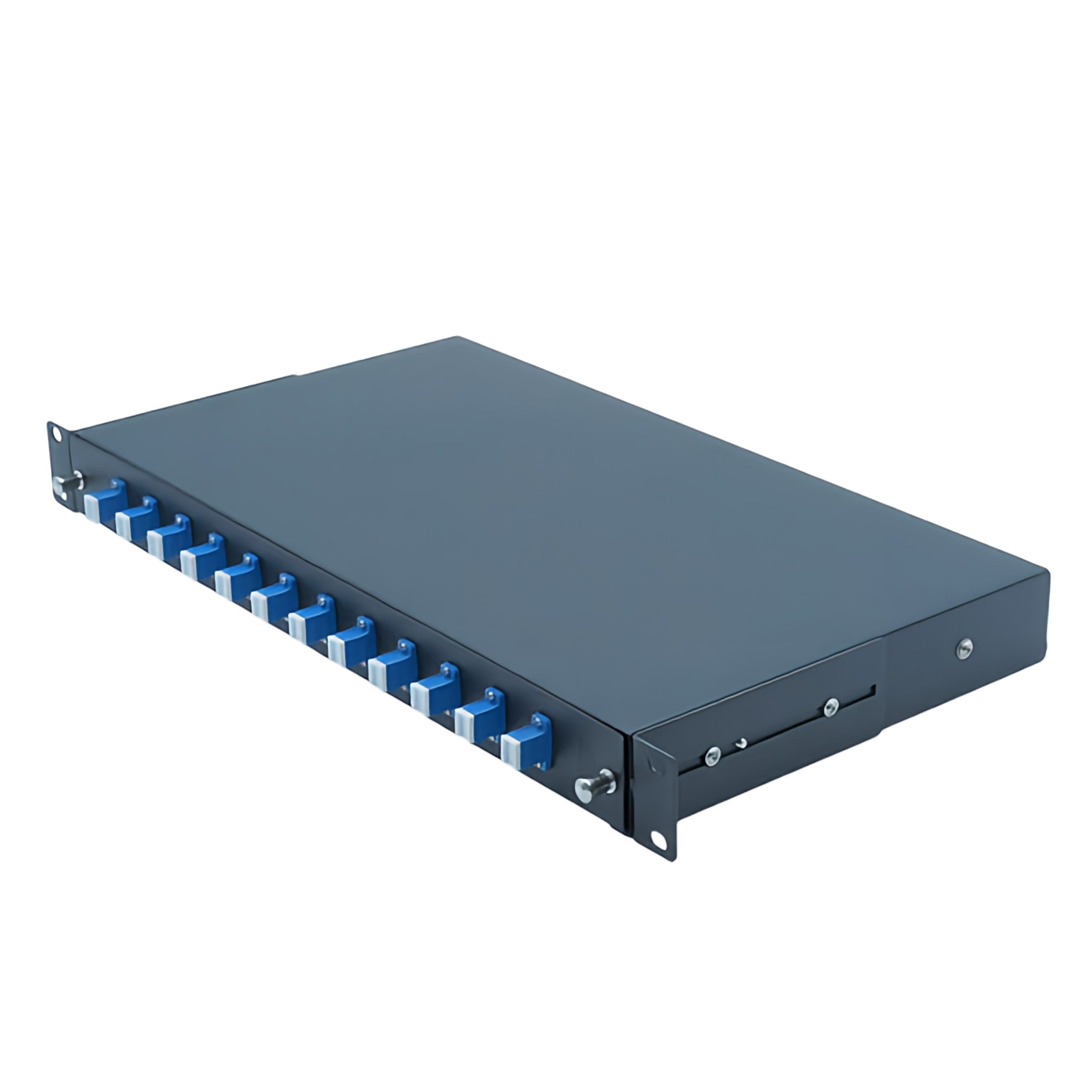

12 Port Fiber Patch Panel With 12 Adapter Ports, 12 Splices

The 12 port sliding fibre patch panel can be pre-loaded with 12 strands of single-mode or multimode pigtail cable, depending on the needs of the customer. It can also be configured with SC and LC adapters on the front. A 24F splice tray and cable routing spool for splicing and storing extra optical fibres are located inside the steel unit, which is a component of fibre optic connectivity solutions and is intended to realise the connection between external optical cables and pigtail. The fibre distribution panel, which is often mounted on the server cabinet’s 19 or 23 rack, offers integrated splice trays and adaptor plates for fibre termination and cable management. It can be used for optical cable branch and terminal connections.

This 12 port rack-mounted fibre patch panel comes with 12 or 24 strand pigtails with single-mode or multimode optical cable, as well as pre-terminated adapters (such as sc and lc in simplex or duplex). Because of its sliding design, the splice tray may be readily removed for straightforward fibre installation and upkeep. While the fibre optic patch cables are routed out of the front through the adapter panel, the cable enters from the back of the rack-mounted panel.

Features:

• Superior cold-rolled steel is used to make the body, and the surface is electrostatically sprayed.
• Set up the splice tray, thread ring, and cable fixed device.
• For future capacity increase, an overlying splice tray is practical.
• The safety is provided by an independent insulation grounding device.
• High-strength engineering polymers are used to make the internal splice tray.
• Oil-resistant nitrile rubber is used to seal inlets and outputs.

Technical index:

Radius of optical fibre winding: ≥40 mm

additional fibre tray loss: none

Fibre length remaining in the tray: ≥1.6 m

Temperature of operation: -400C to +600C

500N lateral pressure-resistance

750N shock resistance
