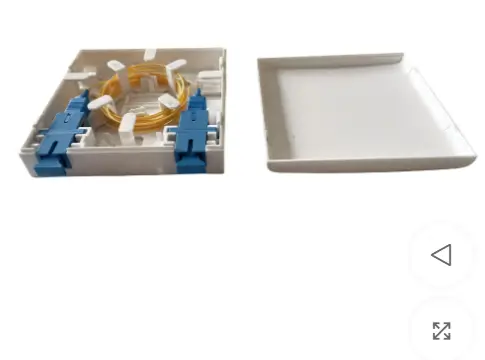

The 2-Port 86-Type Fiber Optic Wall Outlet is a compact indoor termination box designed to connect incoming fiber drop cables to subscriber ONT devices in FTTH networks. It integrates fiber splicing, termination, slack storage, and cable management in a lightweight enclosure, making it suitable for residential and small-business installations.
Designed with standard 86-type dimensions, the outlet can be wall-mounted or installed in a compatible 86-type electrical junction box. It supports 2 SC simplex or 2 LC duplex adapters, provides up to 7 cable entry points, and accommodates up to 4 fibers for organized routing and reliable fiber protection. It is suitable for FTTH, FTTO, and FTTD applications.
Features:
- High-Quality Material: Made from durable plastic for indoor fiber installations.
- Compact Design: Small, lightweight construction with a modern appearance.
- Standard 86-Type Size: Compatible with standard 86-type wall boxes and suitable electrical junction boxes.
- Adapter Compatibility: Supports 2 SC simplex or 2 LC duplex adapters.
- Flexible Cable Entry: Up to 7 cable entry points for convenient installation.
- Splicing Capacity: Accommodates up to 4 fibers.
- Fiber Management: Provides space for fiber splicing, slack storage, and cable routing while maintaining the required bend radius.
- Removable Cover: Allows convenient access during installation and maintenance.
- Dust Protection: Equipped with dust plugs to help protect fiber connections.
- Applications: Suitable for FTTH, FTTO, and FTTD networks in homes, offices, and small businesses.
Specification:
Size (mm) 86*86*24 Weight(kg) 0.052 Cable inlet/outlet 7/2 Cable diameter (mm) Φ3mm or 2*3mm Max splice capacity 2 cores (single) Suitable adapter SC, LC Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
