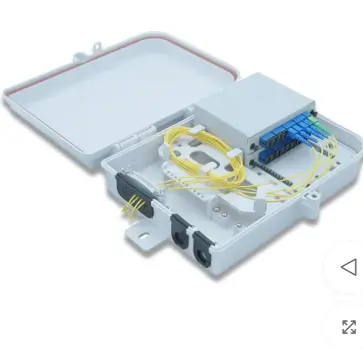

2 Port Fiber Cable Joint Box For FTTH Network, 16 Splices

The outdoor 16-port optical fiber distribution box is designed for direct, branch, and terminal fiber connections in access networks. It provides an efficient connection point between feeder, distribution, and drop cables while integrating fiber splicing, splitting, termination, distribution, and wiring in one enclosure.

With 2 cable inlets and 16 output ports, the box supports up to 16 subscriber connections. It accommodates either 1 × 1:16 or 2 × 1:8 plug-in PLC splitters, 16 SC simplex adapters, and up to 24-fiber splicing capacity. Its dual-layer design provides organized space for splicing, wiring, and cable distribution.

Made from high-density ABS or ABS+PC, the enclosure offers UV and impact resistance. The flip-up splice tray provides easy access for installation and maintenance, while the IP65 waterproof design makes it suitable for indoor and outdoor deployments.

Features:

• 16-Port Capacity: Supports up to 16 subscriber connections
• Cable Ports: 2 cable inlets and 16 output ports
• PLC Splitter Support: Accommodates 1 × 1:16 or 2 × 1:8 plug-in PLC splitters
• Adapter Support: 16 SC simplex adapters
• Splicing Capacity: Supports up to 24 fibers
• Durable Material: High-density ABS or ABS+PC with UV and impact resistance
• Large Storage Space: Provides ample room for cable storage and fiber routing
• Flip-Up Splice Tray: Provides convenient access for installation and maintenance
• Dual-Layer Design: Separates splicing, wiring, and cable distribution for organized management
• Waterproof: IP65 protection for indoor and outdoor applications
• Security: Lockable design provides additional protection

Technical Parameters:

• Minimum Fiber Bend Radius: ≥40 mm
• Splice Tray Additional Loss: ≤0.01 dB
• Compressive Strength: >500 N

Applications:
Suitable for FTTH/FTTH access networks, telecommunications, CATV networks, LANs, apartment buildings, office buildings, and other indoor or outdoor fiber access deployments.
