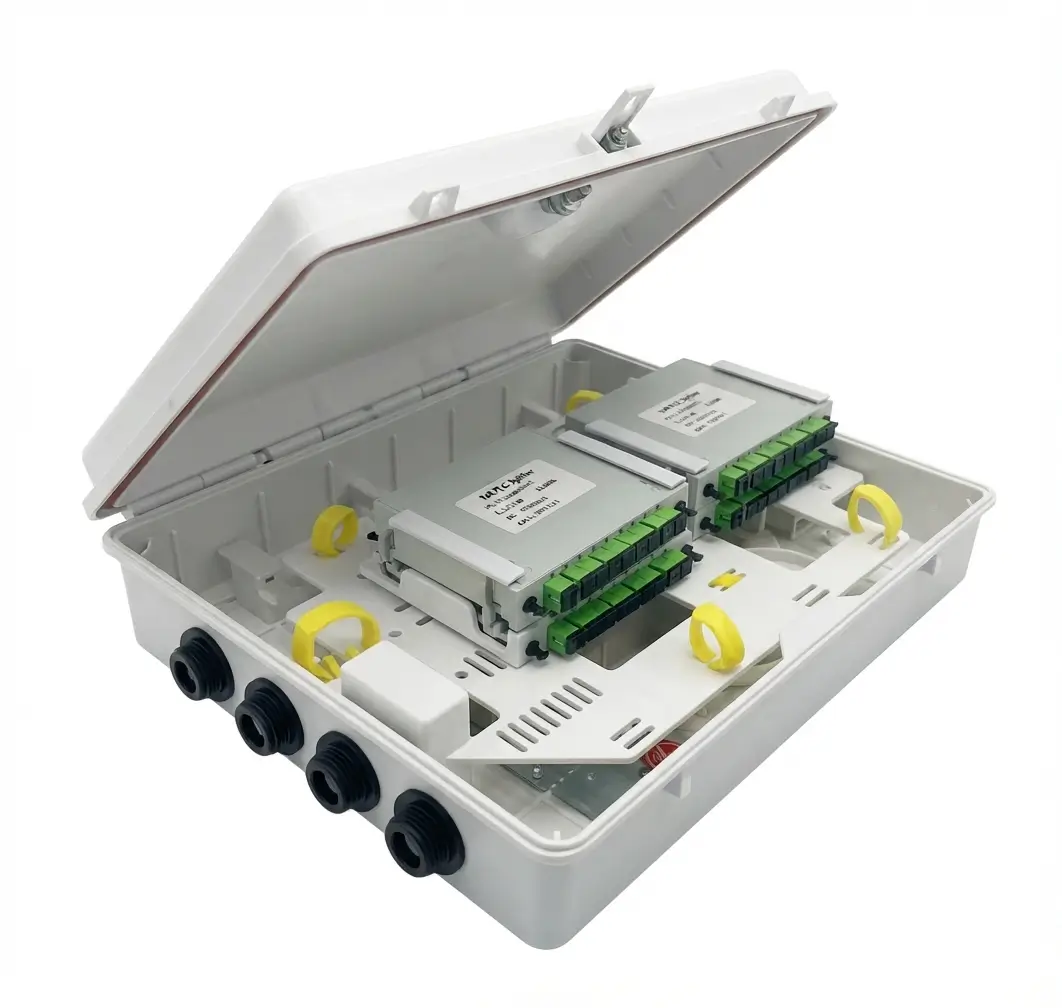

The 2 In 2 Out 32-Core Modular Fiber Distribution Box is a durable, high-capacity enclosure designed for fiber splicing, distribution, termination, and cable management in FTTH/FTTB networks. It supports wall- and pole-mounted installations in MDUs, commercial buildings, villas, and outdoor telecom networks.
The box features 2 main inlets and 2 main outlets, with a dual-layer layout for organized fiber management. The upper layer supports up to 4 × 1:8 cassette-type plug-in PLC splitters or standard adapter panels, while the lower layer includes a 24-core expandable splice tray.
Features:
- Durable Material: High-quality synthetic plastic with UV and aging resistance.
- Waterproof Protection: Secure waterproof lock for indoor and outdoor applications.
- Dual-Layer Design: Separate areas for splicing, splitting, and fiber distribution.
- Flexible Splitter Capacity: Supports up to 4 cassette-type PLC splitters.
- Expandable Splicing: Includes a 24F splice tray for different connection requirements.
- Cable Storage: Dedicated area for temporary pigtail and butterfly cable storage.
- Easy Cable Management: Flip-up middle panel with a dedicated cable locking device.
- Reliable Protection: Provides effective waterproof and dustproof protection for outdoor networks.Specification:
Size(mm) 340*350*120 Weight(kg) 3.48 Cable inlet/outlet 2/2 Cable diameter (mm) ≤ Φ16 Max splice capacity 24 single cores Adapter No None Max splitting splitting1:8(4pcs), 1:16(2pcs) MOQ 100 pcs
