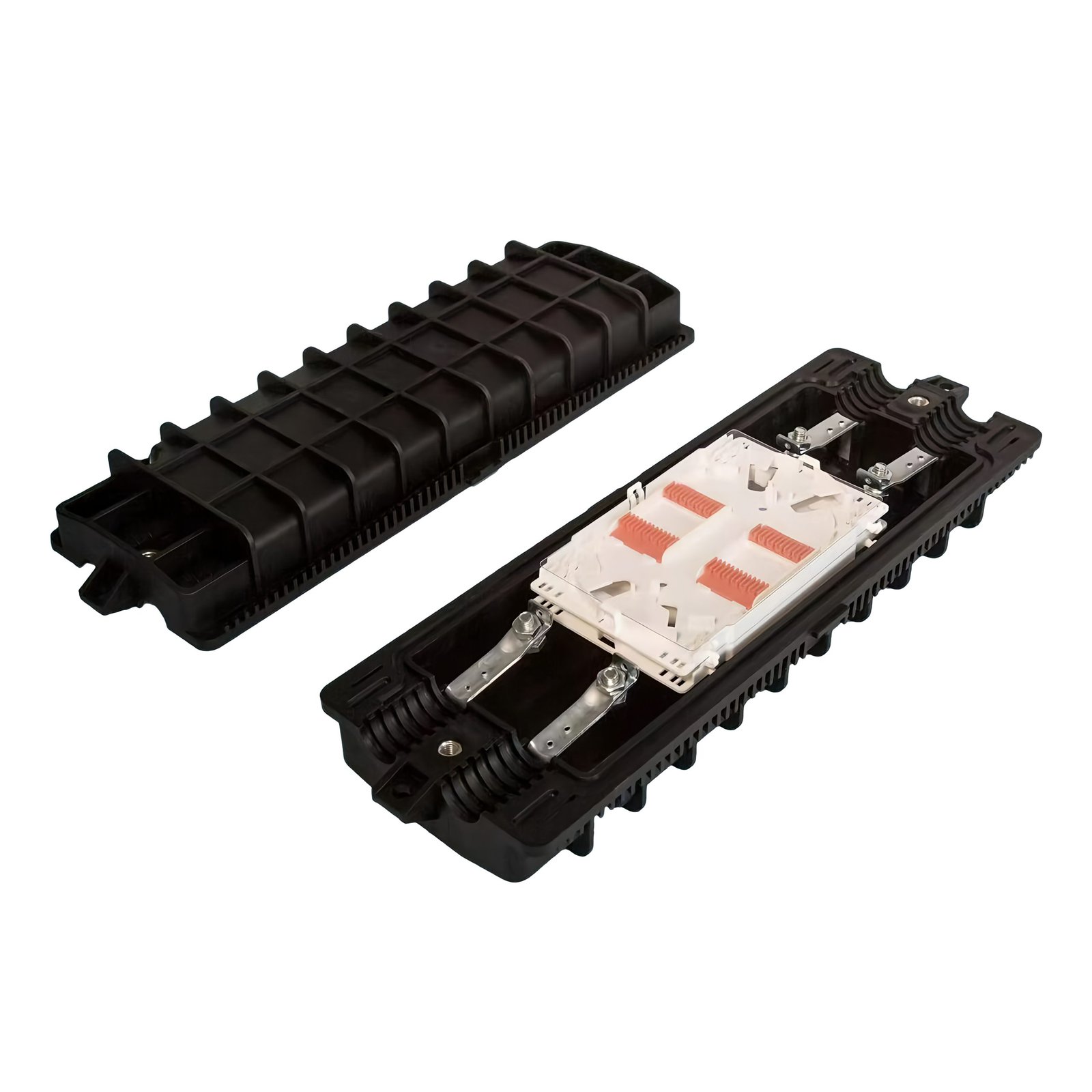

This 2 in 2 out 96 core horizontal splice case is specifically made to offer dependable and durable protection for optical fibre joints and splices. It is made of high-intensity engineering plastics that can withstand harsh environmental conditions, increasing the longevity and dependability of fibre optic networks; four splice trays can be stored inside the outdoor inline fibre joint box to manage splices and extra fibres, enabling future network expansion; the cable entrances are sealed with silicone rubber, which is easy to maintain and reuse.
With two cable ports on each side, the horizontal splice case can accommodate up to 96 core splices. It makes it possible for internet service providers to construct reliable fibre networks that give their customers with high-quality fibre access. For a variety of Outside Plant (OSP) applications, including as aerial and duct installations, the inline splice closure offers outstanding versatility, making it appropriate for your various environmental circumstances. It is appropriate for challenging outdoor conditions because of its waterproof design, which guarantees optimal sealing performance.
Specification：
| Size(mm) | 440*165*110 | Product Type | Horizontal |
| Max capacity | 96 cores(single fiber ) | Tray capacity | 24 cores |
| Splice tray | 4 | Sealing type | Silicone rubber |
| Cable diameter(mm) | Φ10-22 | Entry&Exit | 2 inlet/2 outlet |
