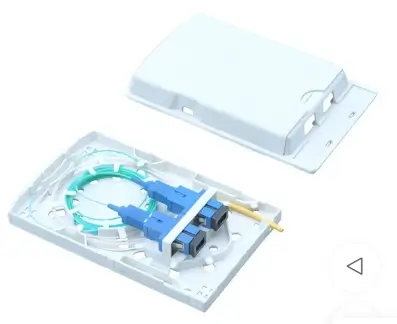

The 2-port FTTH fiber wall outlet is a compact surface-mount termination box designed to connect optical fibers to passive optical network interfaces in residential and office environments. It provides a convenient connection point between incoming drop cables and ONTs while integrating fiber splicing, termination, and basic fiber management in one enclosure.
Designed for FTTH, FTTD, and FTTO applications, the lightweight outlet supports wall-mount, surface-mount, and desktop installation. It features two SC ports for connecting fiber patch cords to optical equipment and provides flexible cable routing through multiple entry positions.
Features:
- Compact Design: Small and lightweight for easy installation and minimal wall space
- Durable Material: Made from high-quality engineering plastic with UV and impact resistance
- Adapter Support: Supports up to 2 SC simplex or LC duplex adapters, depending on configuration
- 4-Fiber Capacity: Provides space for up to 4 fibers for splicing and termination
- Internal Fiber Management: Provides organized slack storage and a suitable fiber bend radius
- Flexible Cable Routing: 8 cable entry positions around the sides and bottom
- Internal Adapter Holders: Provides convenient adapter installation
- Pull-Out Cable Outlet: Helps improve dust protection around cable entry points
- Multiple Installation Options: Suitable for wall-mount, surface-mount, or desktop installation
- Applications: FTTH, FTTD, and FTTO networks in homes, offices, and other indoor environments
Specification:
Size (mm) 130*83*24 Weight(kg) 0.06 Cable inlet/outlet 8/2 Cable Dia (mm) Φ3mm or 2*3mm Max splice capacity 2 cores (single) Suitable adapter SC, LC Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
