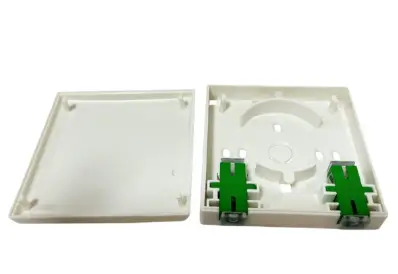

The 2-port fiber optic wall outlet provides a compact termination point for connecting up to two optical fibers to PON interfaces in residential and office environments. It is designed for connecting drop cables and pigtails, with fiber patch cords providing the connection between the outlet and an ONT.
Supporting mechanical or fusion splicing, fiber termination, and cable management, this indoor fiber terminal box is suitable for FTTH, FTTB, and FTTD applications. It can be mounted on walls or standard home electrical junction boxes.
Features:
- Material: Solid ABS plastic for reliable fiber protection

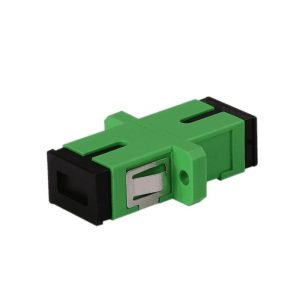

- 2 SC Adapter Ports: Supports two SC optical connections
- 2-Core Capacity: Supports up to 2 fibers for splicing and termination
- Single-Layer Design: Provides an efficient solution for indoor fiber termination and cable management
- External Adapter Holders: Two external adapter holders for easy installation
- Flexible Cable Routing: 5 cable entry points on the bottom and sides
- Dust Protection: Dust-proof cap protects unused adapter ports
- Compact Design: Takes up minimal wall space
- Fiber Management: Internal routing provides organized slack storage and a suitable fiber bend radius
- Applications: Suitable for residential homes, apartments, offices, and small businesses
- Mounting: Suitable for indoor wall-mount and surface-mount installations
Specification:Size (mm) 86*86*22.5 Weight(kg) 0.051 Cable inlet/outlet 5/2 Cable Dia (mm) Φ3mm or 2*3mm Max splice capacity 2 cores (single) Suitable adapter SC, LC Lead time 7 days for 100pcs, 20 days for 300pcs MOQ 100 pcs
